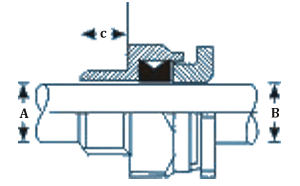

STANDARD :
B.S. 6121, Part-1 : 1989
APPLICATION :
Dry Indoor, for use with all type of SWA Cables
FUNCTION :
Provides for Armour Clamp Only
MECHANICAL : Provides retention of Armour or Brand Impact Resistant
|
|
|
All

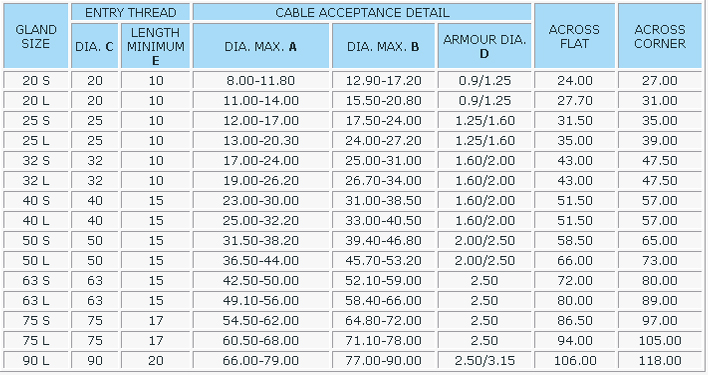

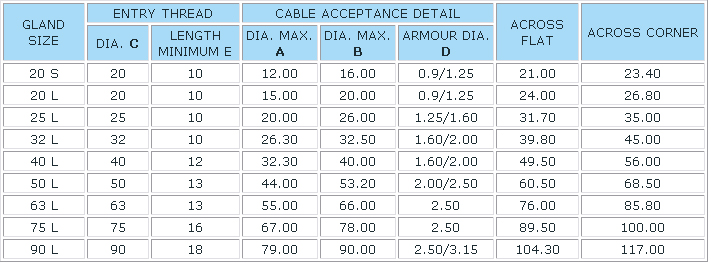

Dimentions Are in Millimeter
|
|
|
|
|

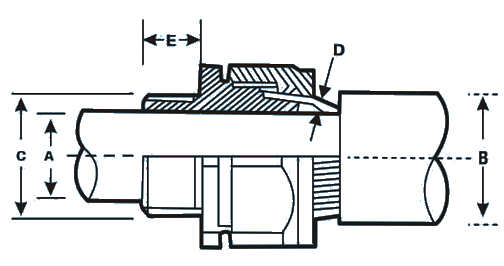

STANDARD : B.S. 6121, Part-1 : 1989
APPLICATION : Indoor, for use with all type of SWA Cables
FUNCTION : Provides for Armour Clamp Only
MECHANICAL : Provides retention of Armour or Brand
Impact Resistant
|
|
All

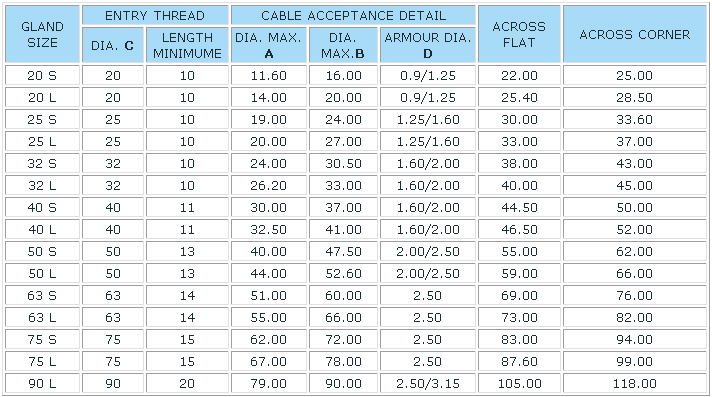

Dimentions Are in Millimeter
|
|
|
|
|
|

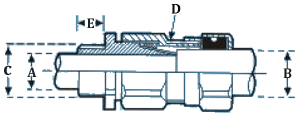

STANDARD : B.S. 6121, Part-1 : 1989
APPLICATION : Outdoor or Indoor, for use with all type of SWA Cables
FUNCTION : Provides for Armour Clamp, Provides seal on outer Sheath
of cable
MECHANICAL : Provides retention of Armour or Brand Impact Resistant
|
|
All

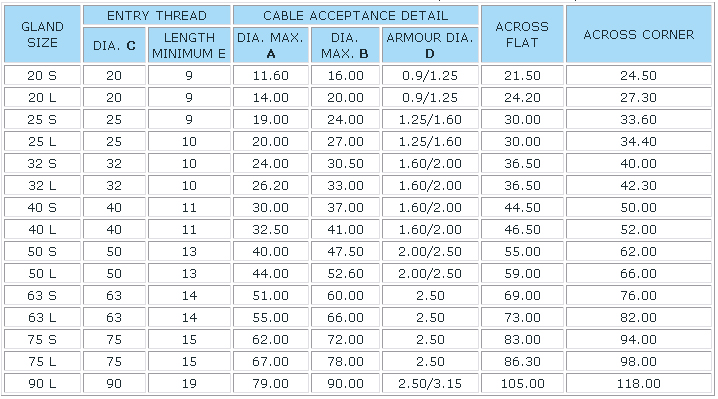

Dimentions Are in Millimeter
|
|
|
|
|

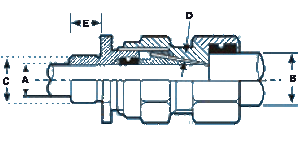

STANDARD : B.S. 6121, Part-1 : 1989
APPLICATION : Indoor or Outdoor, for use with all type of SWA Extruded
Bending Cable
FUNCTION : Provides for Armour Clamp, Provides seal Inner & Outer
Sheath of cable
MECHANICAL : Provides retention of Armour or Brand Impact Resistant
|
All
Dimentions Are in Millimeter
|
|
|
|
|
All
Dimentions Are in Millimeter
|
|
|
|
|

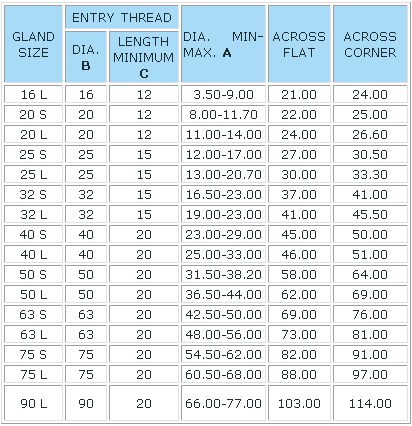

All Dimensions Are in Millimeter
|
|
|
BW KIT
|
Kit
includes Brass Cable Gland, Earth Tag, Steel Locknut/ Brass
Locknut and PVC Shround
Kit
contains Two Sets upto 32mm sizes & One Set for 40mm
and above Sizes
|
CW KIT
|
|
|
LOCKNUT
|
P.V.C.
SHROUD
|
EARTH
TAG
|
Lock
Nuts are available in Brass & Steel (Galv.) In Metalic,
Inches, NPT, BSP & PG Threads.
|
PVC
Shrouds available to suit each size of Cable Gland and denoted
same Gland size reference number. LSF Shrouds are also available
|
Earth
Tags are available from 16mm to 90mm
|
|
P.G.
GLAND
|
|
T.R.S.
GLAND
|
Material
: Brass
Finish : NICKEL PLATED
Size : PG 7 TO PG 48
|
|
Material
: Brass
Finish : SELF PLATED
Size : 20mm, 25mm, 32mm, 1 1/2", 2
|
|
